PULS
QS20.241-C1
AC/DC DIN-Rail DC/DC Din-Rail
Lead time to be confirmedLead time will be confirmed based on current availability.Article no.:A103.999

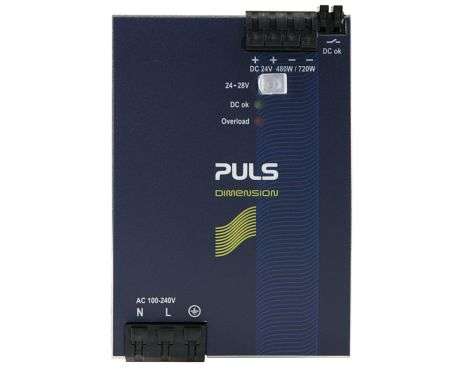

The PULS DIMENSION QS20.241-C1 is a compact and efficient 480 W DIN rail power supply with a wide input range of 85 to 276 V AC. Its adjustable output voltage of 24 to 28 V DC and nominal output current of 20 A make it suitable for demanding industrial applications. BonusPower temporarily provides up to 150% of the rated power, or 720 W, while the integrated output capacitors support motor starting, high inrush currents and the absorption of regenerative energy. The conformal coating provides additional protection against moisture, dust and other environmental influences. Efficiency of up to 93.9%, a potential-free DC-OK relay contact and spring-clamp terminals support reliable operation, straightforward diagnostics and fast installation.
Contact us for more information
Free shipping from €150 in the Benelux
Do you want to order larger quantities? Request a quote.
Secure online payments:
Downloads and resources:
Technical specifications
Output
Voltage
24 ~ 28 VDC
Current
20 A @ 24 VDC
Power
480 W
Power reserves
50%
Return
93.9%
Input
AC Input Network
1-Phase
AC Voltage
85 ~ 276 VAC
DC Voltage
88 ~ 187 VDC
Extra
Key quality marks
UL508IEC60950IEC61010CSAMarineSEMI F47VDMA 24364ATEX - IECex
Diagnostics
DC-OK relay contact
Connectors
Spring clamps
Dimensions (WxHxD)
85 x 124 x 127 mm
Weight
1200g
Extra features
Conformal coating
OVC III
Description
The most outstanding features of this Dimension Q-Series DIN rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be used. High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible. The integrated output power manager, a wide range input voltage design and virtually no input inrush current make installation and usage simple. Diagnostics are easy due to the dry DC-OK contact, a green DC-OK LED and red overload LED. Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
